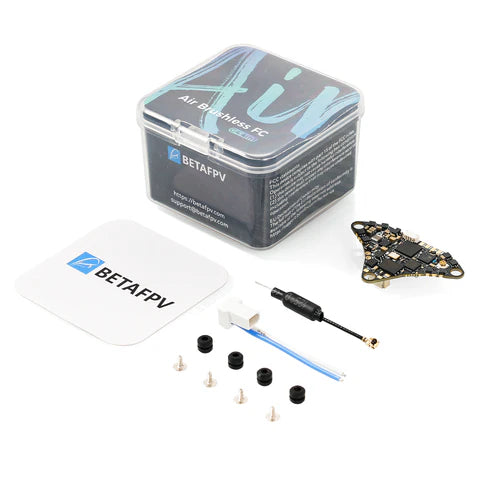

I just got the opportunity to test the final version of this product and there is some IMPORTANT INFORMATION that you must know. Firstly, we have tested and confirmed that this VTX overtransmits on some channels. Others have recognized this and therefore it might not be legal at some big races. I do not recommend this flight controller for race builds. Secondly, this flight controller does not always come with an adapter. Ours now DO come with adapters, but don’t expect this to be the case everywhere else until all old stock is flushed out.
Now for the initial review 👇
I got the chance to test this flight controller pre-release and so far, it has been great. There have been a couple small changes since I flew it but I expect the performance to be just as good here. The new gyro flew great and the VTX was performing consistently and outputting right at 25mw for racing (edit: this is no longer the case with the final version). Adding a receiver to this flight controller results in one of the lightest flight controllers that's ever been released. If the VTX manages to hold up on the finished units as well as it did on mine, I think this flight controller will end up being very popular.
You can find my whole review here:
https://youtu.be/5XTs9TfQZuQ?si=aucOSq5aOVGGqbcV
FROM BETAFPV
Air Brushless Flight Controller, the first 1S FC that utilizes the STM32G473CEU6, experienced a remarkable 55% increase in computing speed and lightning-fast response times, surpassing the F411. Equipped with the industry-leading ICM42688P gyro and onboard 5.8G 25mw~400mw VTX, it offers both 4IN1 with 2.9g and 5IN1 with 3.6g Versions, which takes your drone's posture and movement accurately to the next level. Immerse yourself effortlessly in the drone world of Finger-Tip control. Unmatched value and undeniable superiority with it, leave most of the competition in the dust. It will be the advanced choice for future ultralight 1S whoop drones!
Bullet Point
Air Brushless Flight Controller, the first 1S FC that utilizes the G473 processor, experienced a remarkable 55% increase in computing speed and lightning-fast response times for precise racing and complex freestyle maneuvers, surpassing the F411.
Higher integration yet lightweighter design, featuring a custom miniature OSD chip. Weighing only 2.9g (4IN1 Version) or 3.6g (5IN1 Version), it offers extra UART port options for effortless function expansions, adapting flawlessly to any flight scenario.
Default integrated onboard 25-400mW VTX. Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC adjustments. The 5IN1 Version even integrates the Serial ELRS 2.4G RX.
Elevate your drone's precision with the industry-leading ICM42688P gyro, integrated accelerometer, cutting-edge sensor calibration, and filtering algorithms, and a sample rate of up to 8K, which takes the drone's posture and movement accurate and precise drone to the next level.
Unlock extensive flight data recording and analysis with an impressive up to 16MB capacity black box. Maximize performance and diagnose faults effectively, leveraging the full potential of your drone.
Specification of FC

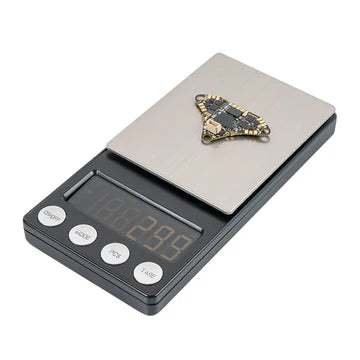

Weight: 2.9g(4IN1 Version) / 3.6g(5IN1 Version)
Mounting Hole Size: 26mm x 26mm
CPU*: STM32G473CEU6 (168MHz)
Six-Axis: ICM42688P (SPI connection)
Blackbox Memory: 16MB
Sensor: Voltage&Current
5V BEC*: 5V 3A
USB Port: SH1.0 4-Pin
Built-in ESC with 5A continuous
RX: Serial ELRS 2.4G (V3.4.2) (Only 5IN1 Version)
4IN1 Version: FC+ESC+OSD+VTX
5IN1 Version: FC+ESC+OSD+VTX+RX
Specification of ESC
Input Voltage: 1S
FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
Signal Support: D-shot300, D-shot600
Specification of VTX
Output Power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation Type: FM
Frequency Control: PLL
All Harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: ±1.5dB
Antenna Port: 50 Ω
Operating Temperature: -10℃~+80℃
Diagram
Below is the diagram for the Air Brushless Flight Controller (4IN1 Version).

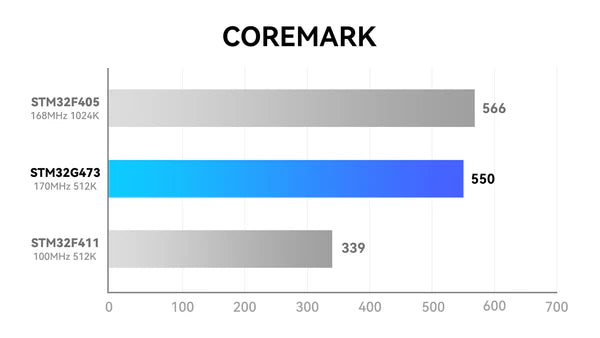

Comparison Between G473 and F411
Say goodbye to limitations and embrace the cutting-edge technology of the G473 flight controller for an unparalleled flight experience. Air Brushless Flight Controller features up to 168MHz superior CPU Clock Speed and 4 richer serial ports, enabling lightning-fast response times and advanced computing power, making it ideal for demanding flight, which takes your flying experience to the next level and demonstrates outstanding performance, surpassing all 1S FC options available on the market at present.

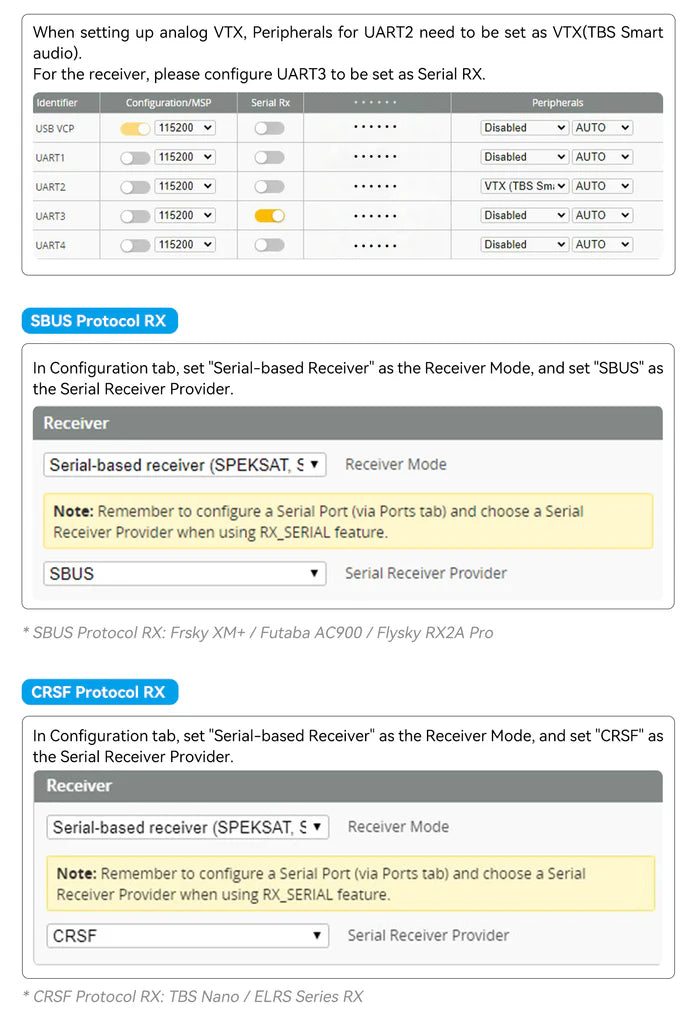

Connecting External RX/VTX
Please note that UART2 has connected to the VTX by default. This FC reserves 3 complete full-featured serial ports that can be used for external CRSF/SBUS receivers, GPS, HD VTX, or other serial devices. You can refer to the below pictures.
Attention
VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.
Motor Wiring: Only soldering is supported for motor wiring on the flight control. Avoid terminal plugging.
VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burnout.
